CNC RIVET MACHINE, CNC corner crimping machine, CNC hole drilling machine for windows or doors corner crimping. window corner screws machine.

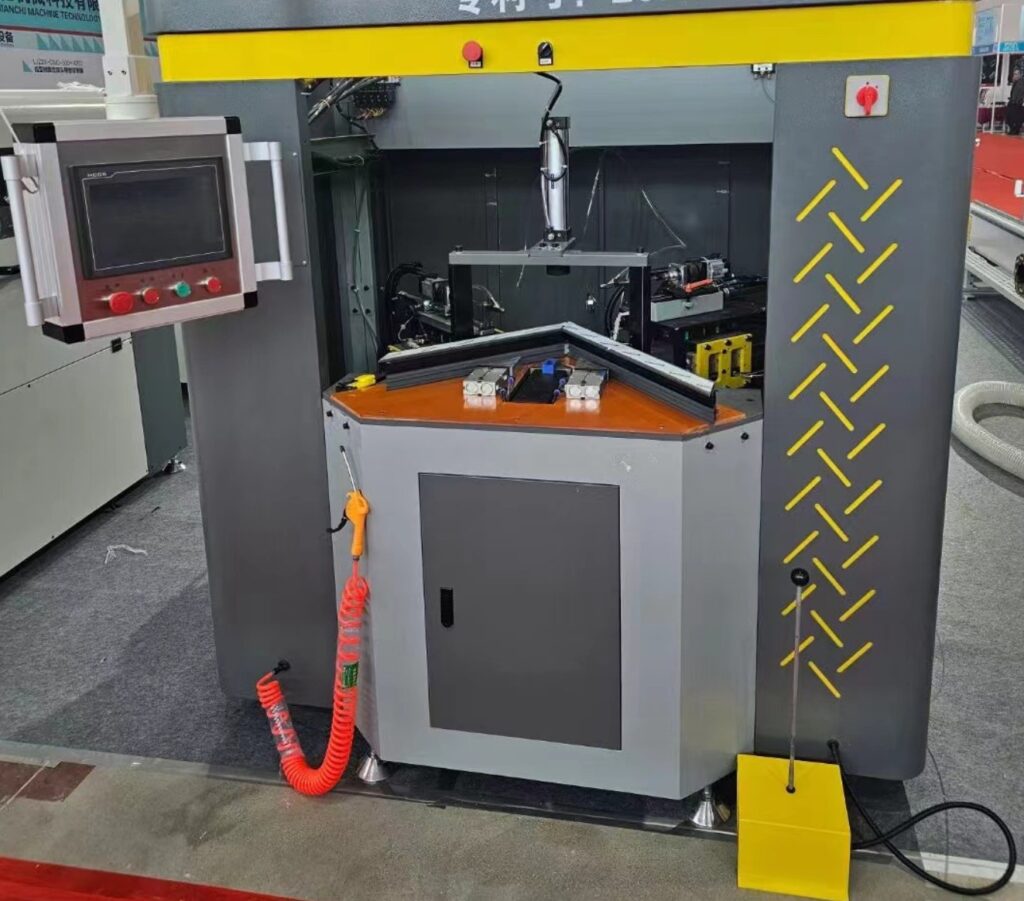

Machine picture:

1. Main Performance Features

This machine delivers an optimal solution for frame assembly of system doors and windows and adopts servo motor-driven positioning. It completes complicated processing procedures including milling for corner brace holes and glue injection holes, corner brace fastening with screw driving, and glue dispensing in one single operation. Featuring high processing efficiency and precision, it eliminates extra costs incurred from complicated mould preparation and human operating errors.

2. Main Technical Parameters

Servo Specifications

Axis Description	Power	Max. Travel	Max. Rotational Speed
Z-axis (Vertical)	750 W	290 mm	3000 rpm
X-axis (Horizontal Left-Right)	400 W × 2	110 mm	3000 rpm
Y-axis (Horizontal Front-Back)	400 W × 2	200 mm	3000 rpm
Positioning Axis (Front-Back)	400 W	100 mm	3000 rpm

• Spindle speed for hole drilling: 16000 rpm
• Screw driving electric screwdriver: 400 W × 2
• Screw specification: mbx15x8.3
• Overall dimension: 1750 × 1750 × 2000 mm

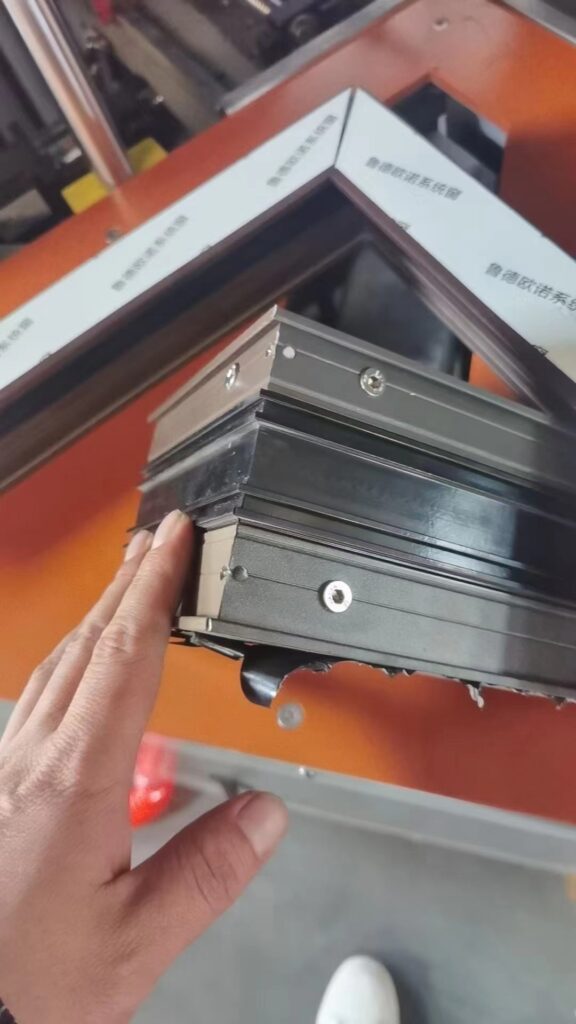

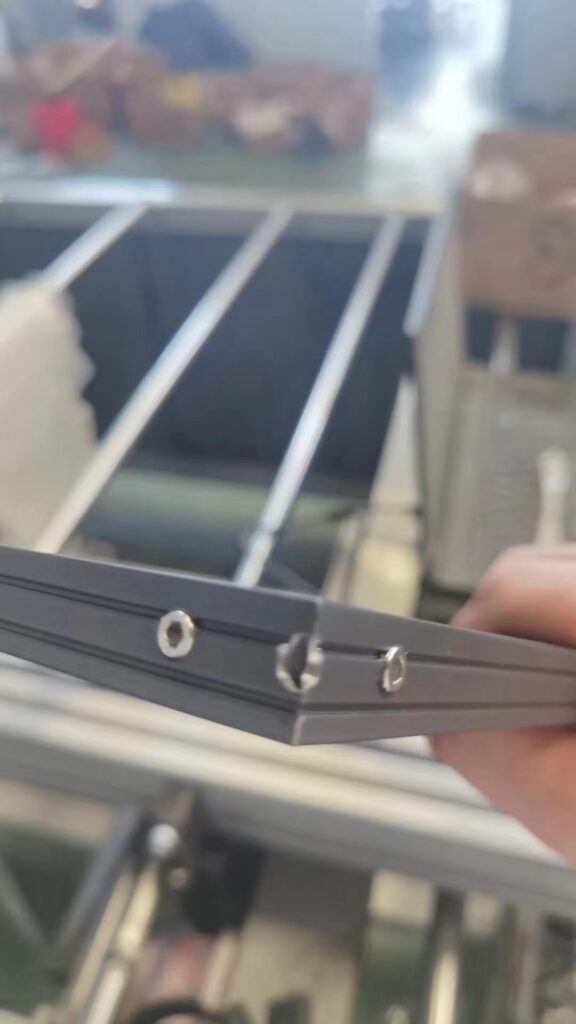

work result
