Name: cradle steel rope
SKU: 8676
Price: 0.80 USD
Availability: InStock

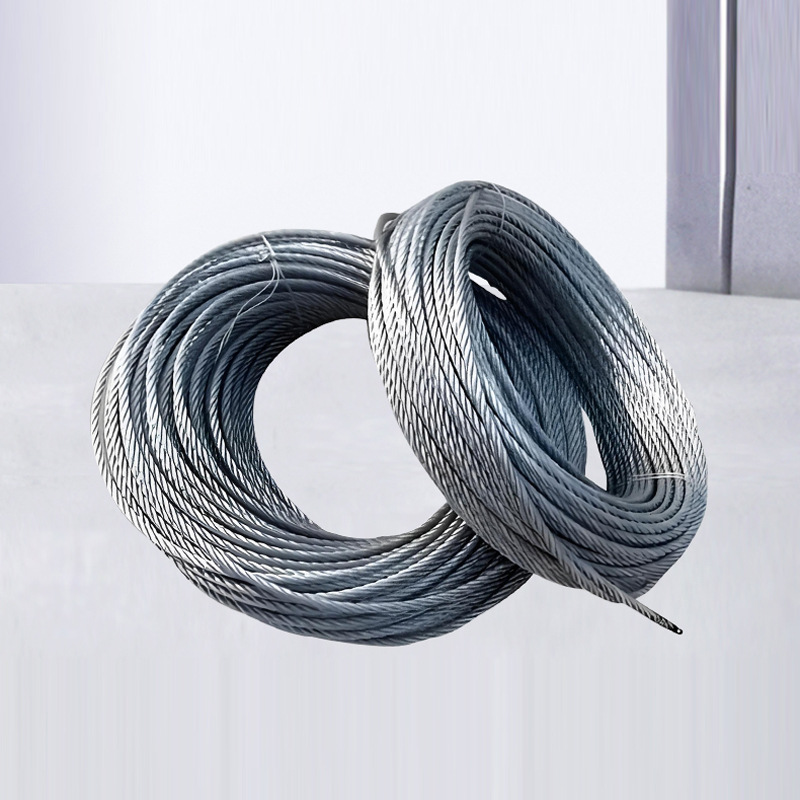

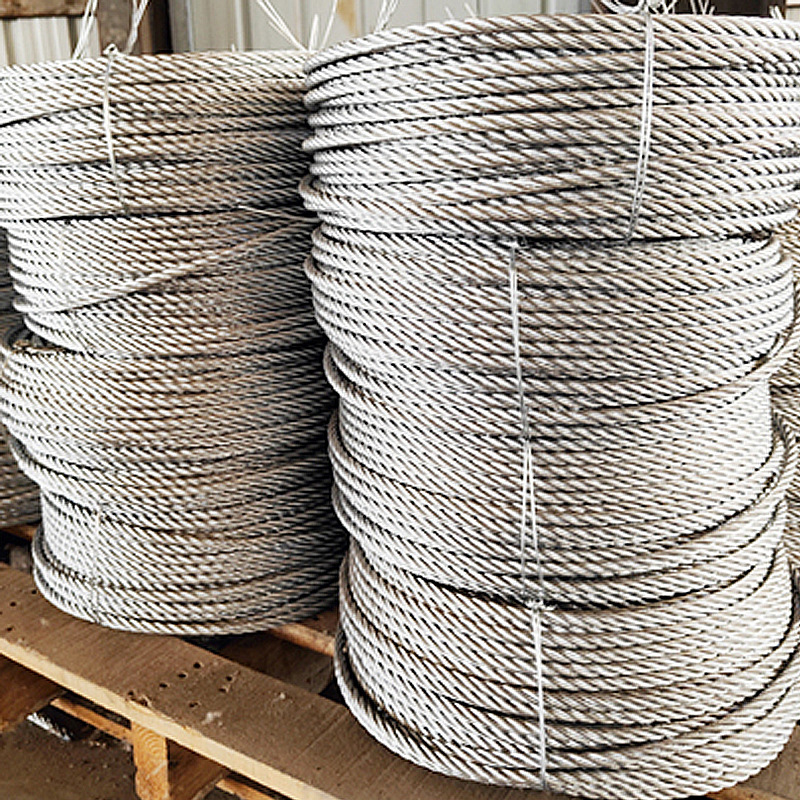

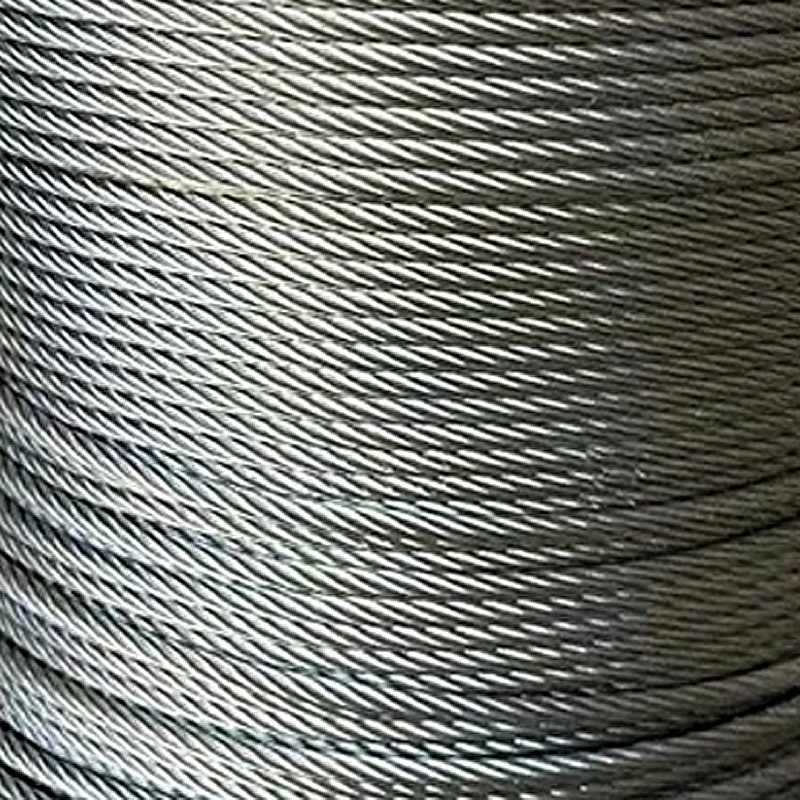

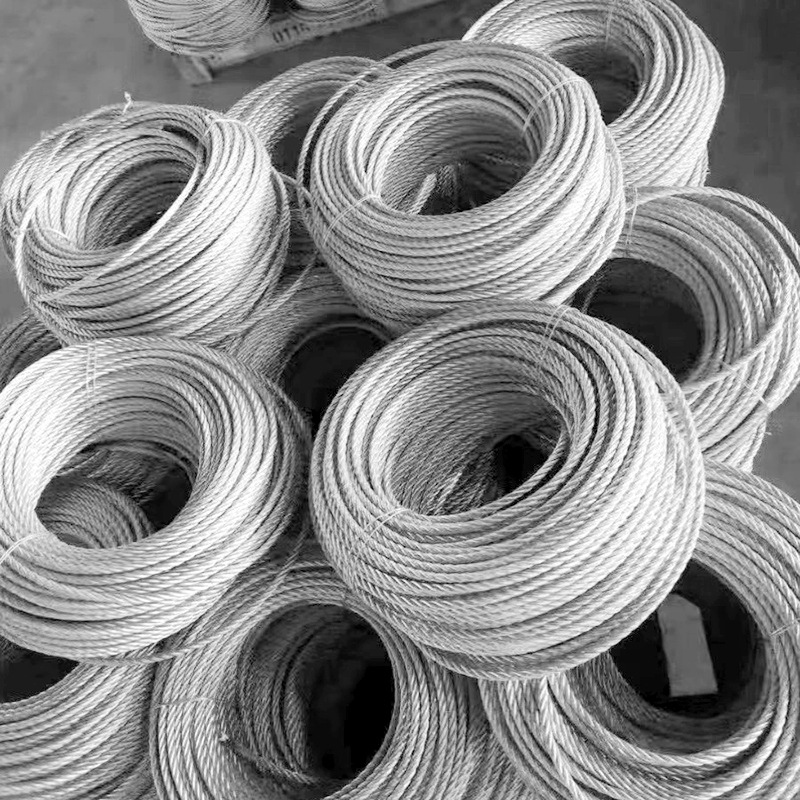

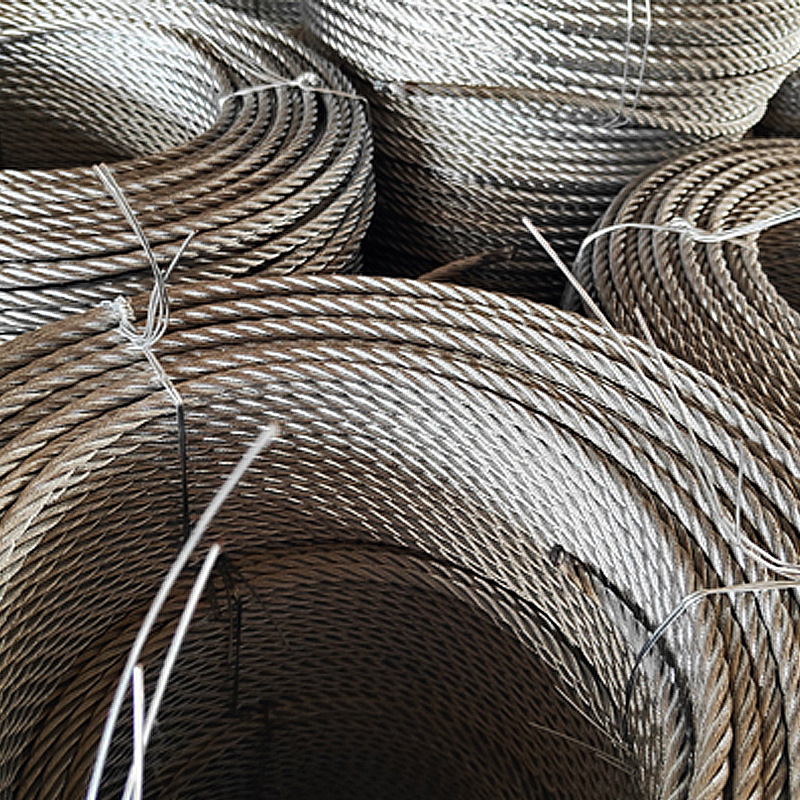

cradle steel rope

$0.80

Load‑bearing & Safety Factor Minimum breaking force of single rope: approx. 55 kN Mandatory safety factor n≥9 according to GB 19155 Allowable working tension for single rope = 55 ÷ 9 ≈ 6.11 kN (≈623 kg) ZLP800 platform works with two load‑bearing ropes. Platform self‑weight plus rated load 800 kg are shared by two ropes.

Description

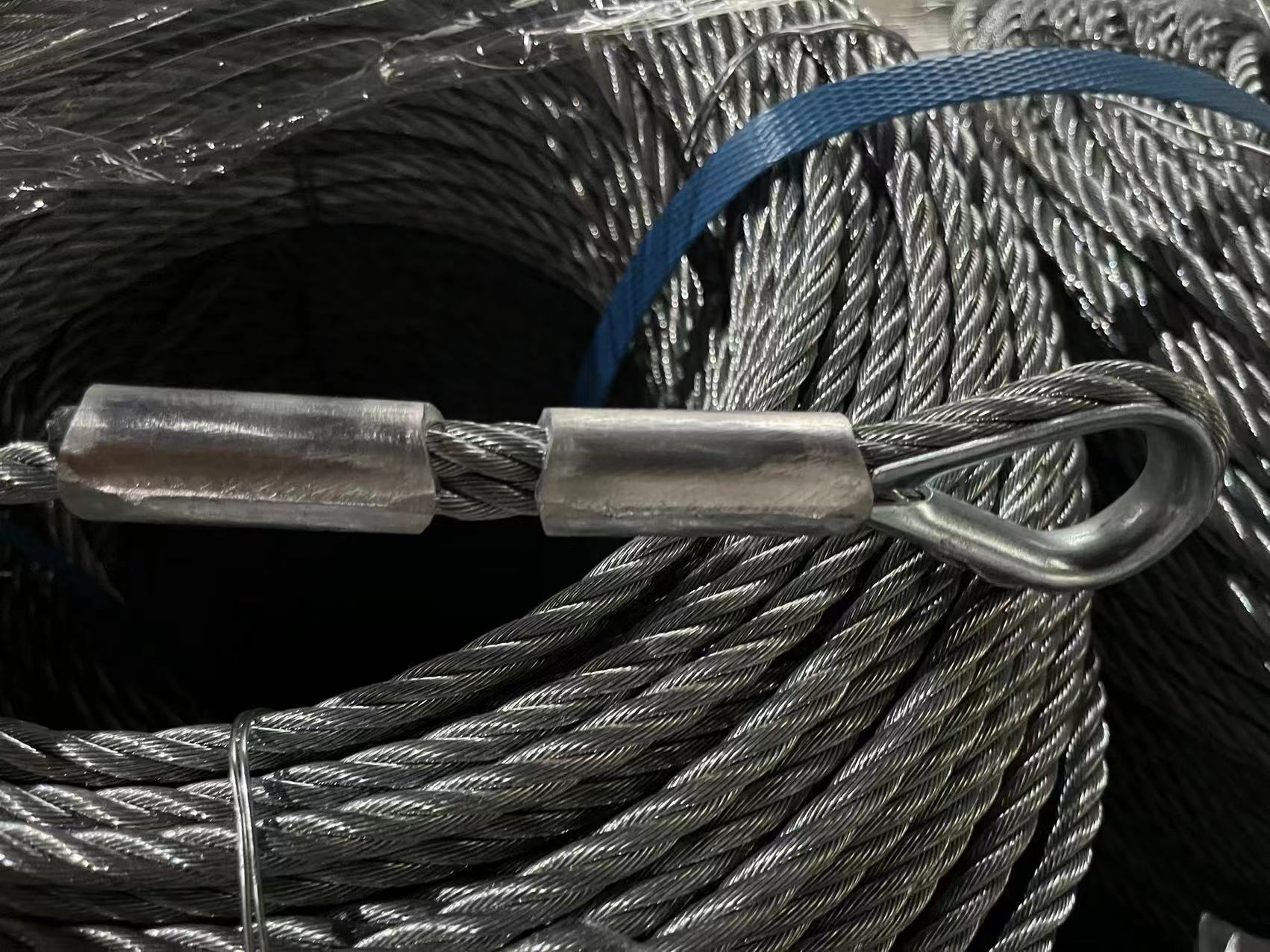

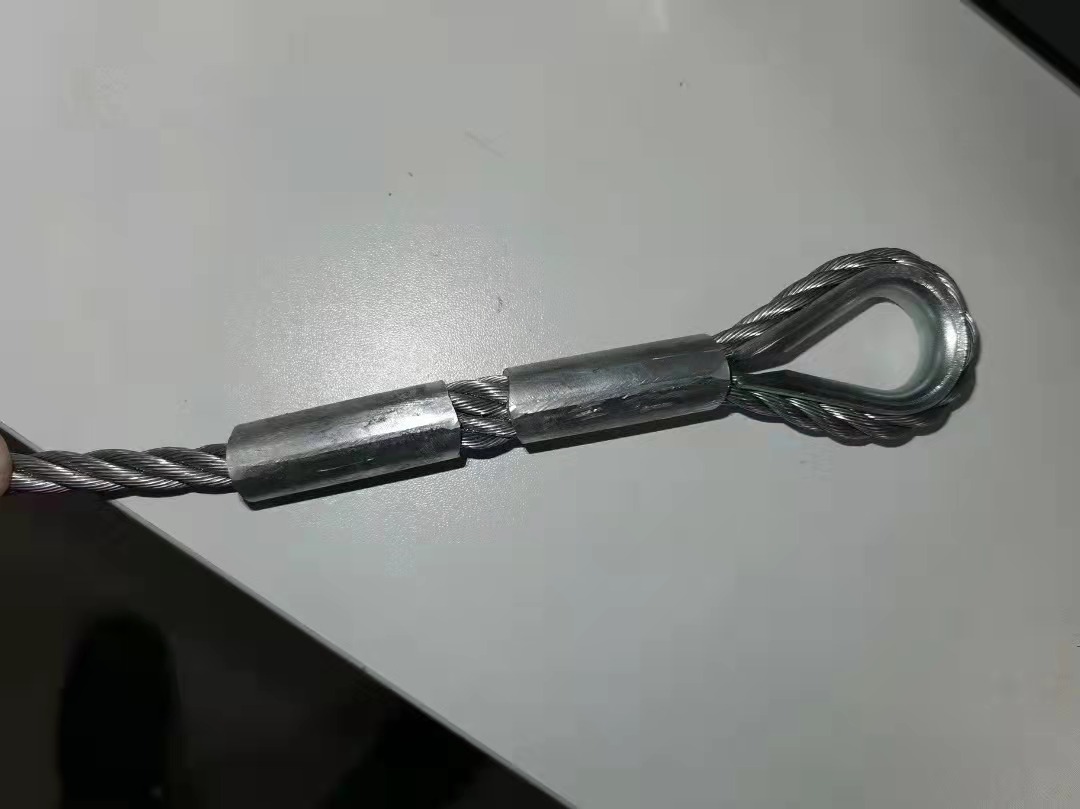

cradle steel rope with lock thimble

Item	Specification
Nominal Diameter	8.6 mm, tolerance +3% / ‑2%
Construction	4×31SW , Warrington‑Seale, 4‑strand non‑rotating rope for suspended platform
Nominal Tensile Strength	2160 MPa
Minimum Breaking Force	≥54.4‑56 kN (≈5.55 ton)
Unit Weight	30.3 kg / 100 m
Lay Direction	Right regular lay (S‑Z). Regular lay is mandatory; lang lay is prohibited.
Compatible Hoist	LTD8 (for ZLP800 suspended platform)
